High Quality ELM327 WIFI V1.5 Wireless OBD2 Diagnostic Tool
Let's compare Cheap V2.1 ELM327 with our V1.5 ELM 327
| Protocols | V1.5 | V2.1 |
| ISO41-2（）5 baud init,10.4 Kbaud | √ | √ |
| ISO14230-4 KWP(5 baud init,10.4 Kbaud) | √ | √ |
| ISO14230-4 KWP（fast init,10.4 Kbaud） | √ | √ |
| ISO15765-4 CAN (11 bit ID,500 Kbaud) | √ | √ |
| ISO15765-4 CAN (29 bit ID,500 Kbaud) | √ | √ |
| ISO15765-4 CAN (11 bit ID,250 Kbaud) | √ | √ |
| ISO15765-4 CAN (29 bit ID,250 Kbaud) | √ | √ |
| SAE J1850 PWM(41.6 Kbaud) | √ | |
| SAE J1850 VPW(10.4 Kbaud) | √ |
Features of ELM327 Wifi V1.5 OBD2 car tool
1,Works with OBD-II compliant vehicles.
2,Works on all 1996 to 2010 cars and light trucks sold in the United States, some 1994 and 1995 models are also ok.
3,Software included in CD for Smartphone, PC and iOS (for iPhone, iPad, iTouch, Mac).
4,Clear trouble codes and turn off the MIL ("Check Engine" light).
5,Read diagnostic trouble codes, both generic and manufacturer-specific, and display their meaning (over 3000 generic code definitions in the database).
How to confirm if your vehicle is compliant with OBD II or not?
Please pop the hood and look for a sticker named "VEHICLE EMISSION CONTORL INFORMATION".If there is WI-FI OBD AUTO CHECKER that is to say your car is able to communicate with vehicles which adopt following protocols
Protocols:
ISO 9141,ISO 11898(aka. CAN),ISO 14230(aka. KWP2000),ISO 15765(aka. CAN) and SAE J1939
The followings are some of the parameters which could be read from the vehicle.
Vehicle Speed
Fuel Consumption
RPM
Engine Coolant Temp
Throttle Position
Calculated Engine Load
Timing Advance
Fuel Pressure
Air Intake Temp
Intake Manifold Pressure
Fuel Level
Mass Air Flow
EVAP System Vapor Pressure
Fuel Trim
and
Barometric Pressure
Attention: Your vehicle may not able to read out all the above parameters. How many parameters your car can get is depended on the vehicle manufacturer's actual implementation.
Where can I get the software?
You can log on to the apple application store to get your commercial software, such as Dynolicious.
There is also a software in the CD-ROM coming along with the device. You can use this piece of CD to config and test the WI-FI OBD AUTO CHECKER.
Specifications:
Material: automotive grade plastic
Operating temperature: -15 to 100 Deg Celsius
SSID: WiFiOBD
IP: 192.168.0.10
Subnet: 255.255.255.0
Port: 35000
Range: 50 ft (Line of sight)
Antenna: Internal
Power Consumption: 0.75 Watts (With Power Switch)
Wifi Standard: 802.11a/b/g

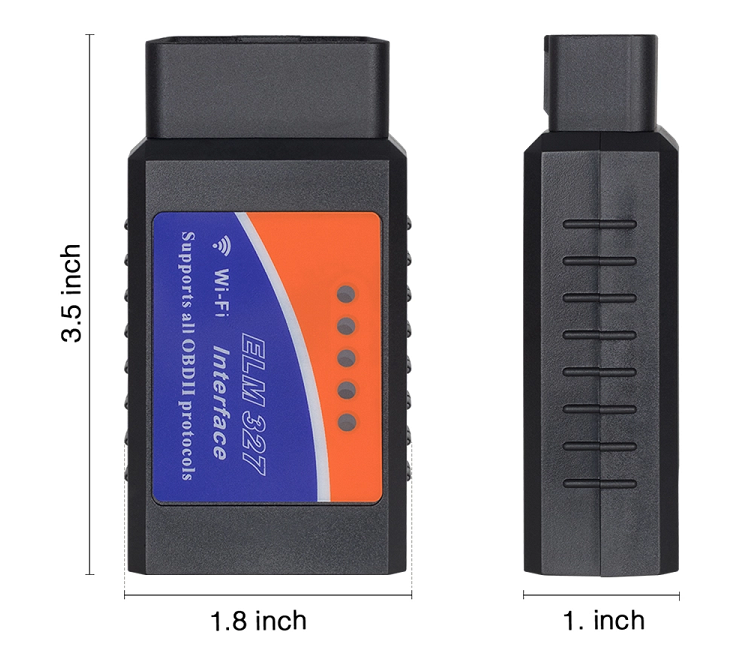

Item size: 9 * 5 * 3cm (3.5 * 2.0 * 1.2in)
Item weight: 75g/2.6oz

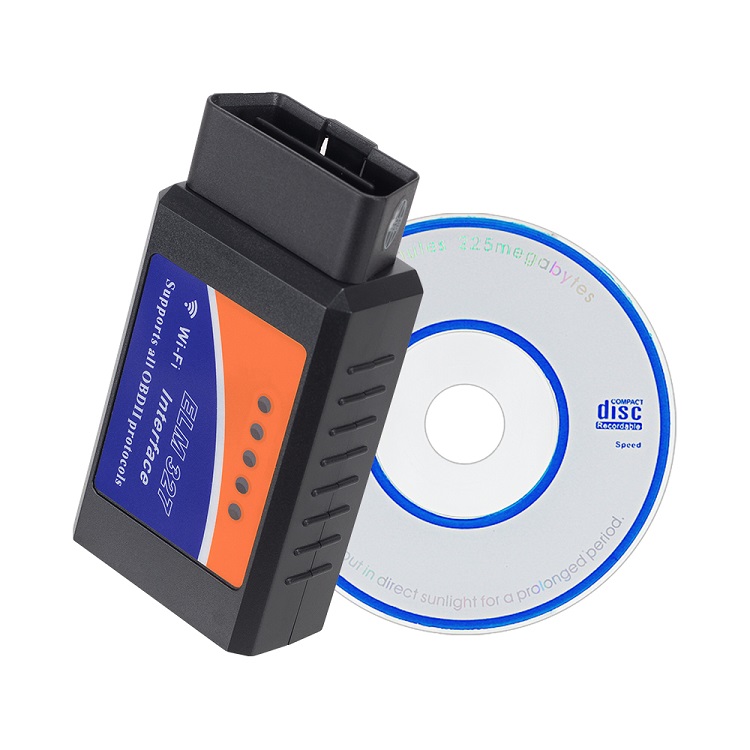

ELM327 Wifi V1.5 come with
1 * Wi-Fi ELM 327
1 * CD with software
